Thermal Gap Filler

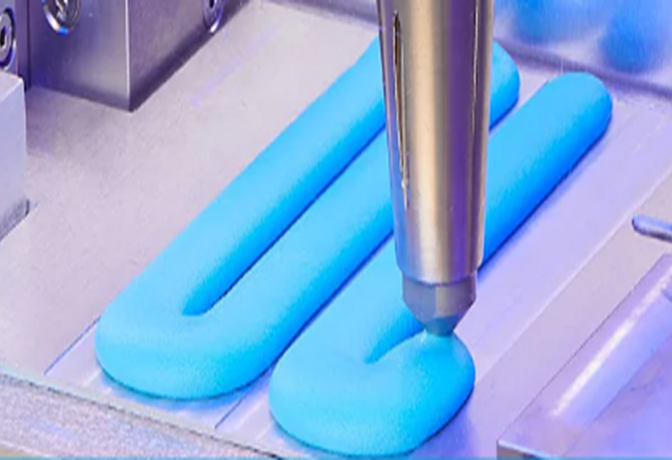

실리콘 Thermal Gap Filler
-
특징 및 장점
열 전도도 : 3W/mk , 4W/mk
저비중 : 1.85 ~ 2.4
Low Oil Bleeding
-
적 용
EV Battery Pack, OBC&LDC
Fuel Cell Electronic Vehicle Reactor
| Properties | Unit | Specifications | Test Method | |||
|---|---|---|---|---|---|---|
| 2G030-L | 2G030-M | 2G040 | ||||
| Thermal Conductivity | W/m·K | >3.3 | >3.3 | >4.0 | ASTM D 5470 | |
| >2.3 | >2.3 | >3.0 | ISO 22007-2 (HOT DISK) | |||
| Specific Gravity | g/cm | < 1.85 | 2.0 | < 2.4 | ASTM D 792 | |
| Dielectric breakdown | KV/mm | > 5 | > 10 | > 10 | ADTM D 149 | |
| Hardness | Shore 00 | 45±10 | 45±10 | 45±10 | ASTM D 2240 | |
| Curing Time | Hour | 24hr@25℃ | 24hr@25℃ | 24hr@25℃ | Max.1: Time to become Hardness 60 at 120℃ Max.24: Time to become Hardness 40 |
|
| Intial curing speed | minute | 2hr | 2hr | 2hr | Time to Tack Free at 25℃ | |
| Flame Retardant | - | V-0 | V-0 | V-0 | UL 94V | |
| Viscosity | Base | cps | 65,000±10,000 | 160,000±15,000 | 210,000±30,000 | BROOK FIELD @spindle no.52 @shear rate 2.4 @25±0.5℃ |
| Catalyst | Cps | 70,000±10,000 | 160,000±15,000 | 210,000±30,000 | ||
| Mixes | Cps | 70,000±10,000 | 160,000±15,000 | 210,000±30,000 | ||
| Color | Base | - | Black | Adjustable | Adjustable | Visual |
| Catalyst | - | White | Adjustable | Adjustable | ||
| Mixing Ratio | - | 1:1 | 1:1 | 1:1 | ||
